Name: CX8045GA 4 MHz 50ppm Crystal Units 12pF 300 Ohms 2SMD No Lead
Brand: original
Price: 1 USD

Brand Name : original

Model Number : CX8045GA

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Frequency : 4 MHz

Frequency Stability : ±100ppm

Frequency Tolerance : ±50ppm

Load Capacitance : 12pF

ESR (Equivalent Series Resistance) : 300 Ohms

Operating Mode : Fundamental

Operating Temperature : -40°C ~ 125°C

Ratings : AEC-Q200

Contact Now

CX8045GA 4 MHz ±50ppm Crystal 12pF 300 Ohms 2-SMD, No Lead

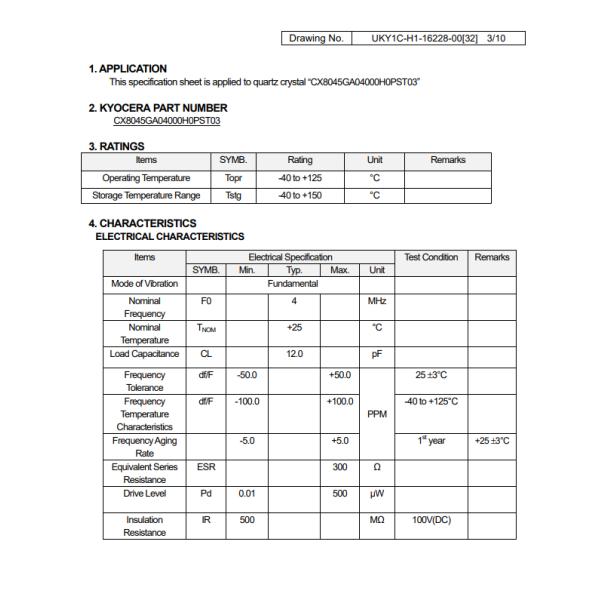

Specifications of CX8045GA

TYPE	DESCRIPTION
Category	Crystals, Oscillators, Resonators
	Crystals
Mfr	KYOCERA AVX
Series	CX8045GA, Kyocera
Package	Tape & Reel (TR)
	Cut Tape (CT)
Type	MHz Crystal
Frequency	4 MHz
Frequency Stability	±100ppm
Frequency Tolerance	±50ppm
Load Capacitance	12pF
ESR (Equivalent Series Resistance)	300 Ohms
Operating Mode	Fundamental
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead
Size / Dimension	0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max)	0.079" (2.00mm)

Environmental & Export Classifications of CX8045GA

ATTRIBUTE	DESCRIPTION
RoHS Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.60.0030

CX8045GA 4 MHz ±50ppm Crystal Units 12pF 300 Ohms 2-SMD No Lead
