7427925111 Signal Line Ferrite Bead 20 Ohms @ 100 MHz 1 1812 (4532 Metric) 3A

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

7427925111 Signal Line Ferrite Bead 20 Ohms @ 100 MHz 1 1812 (4532 Metric) 3A

Brand Name : original

Model Number : 742792511

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Filter Type : Signal Line

Number of Lines : 1

Impedance @ Frequency : 120 Ohms @ 100 MHz

Current Rating (Max) : 3A

DC Resistance (DCR) (Max) : 50mOhm

Operating Temperature : -55°C ~ 125°C

Contact Now

7427925111 Signal Line Ferrite Bead 20 Ohms @ 100 MHz 1 1812 (4532 Metric) 3A

FERRITE BEAD 120 OHM 1812 1LN

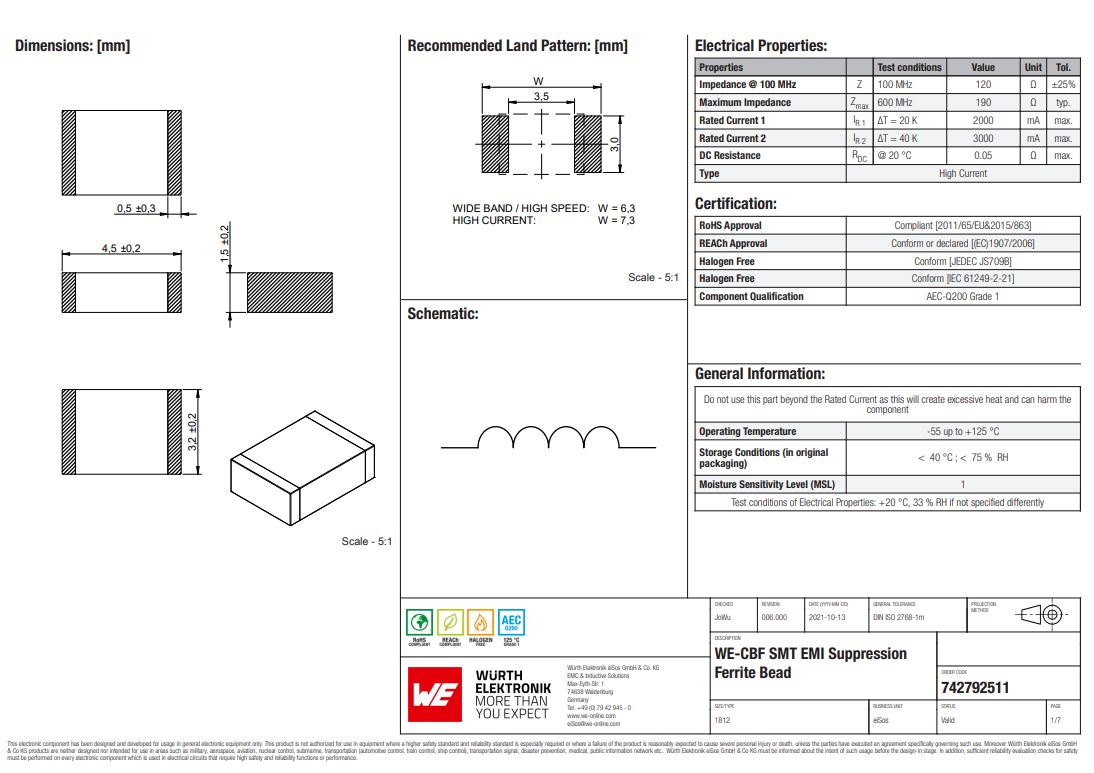

Specifications of 7427925111

TYPE DESCRIPTION
Category Ferrite Beads and Chips
Mfr Würth Elektronik
Series WE-CBF
Package Tape & Reel (TR)
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 120 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 50mOhm
Ratings -
Operating Temperature -55°C ~ 125°C
Package / Case 1812 (4532 Metric)
Mounting Type Surface Mount
Height (Max) 0.067" (1.70mm)
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)


Environmental & Export Classifications of 7427925111

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
