TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC

SZ ADE Electronics Co., Ltd
Contact Now

TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC

Brand Name : original

Model Number : TL3472IDR

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 1000

Delivery Time : 3-5ddays

Packaging Details : carton box

Amplifier Type : General Purpose

Number of Circuits : 2

Slew Rate : 13V/µs

Gain Bandwidth Product : 4 MHz

Current - Input Bias : 100 nA

Voltage - Input Offset : 1 mV

Current - Supply : 3.5mA (x2 Channels)

Current - Output / Channel : 34 mA

Contact Now

TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC

Specifications of TL3472IDR

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Linear
Amplifiers
Instrumentation, OP Amps, Buffer Amps
Mfr Texas Instruments
Series -
Package Tape & Reel (TR)
Cut Tape (CT)
Product Status Active
Amplifier Type General Purpose
Number of Circuits 2
Output Type -
Slew Rate 13V/µs
Gain Bandwidth Product 4 MHz
Current - Input Bias 100 nA
Voltage - Input Offset 1 mV
Current - Supply 3.5mA (x2 Channels)
Current - Output / Channel 34 mA
Voltage - Supply Span (Min) 4 V
Voltage - Supply Span (Max) 36 V
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Base Product Number TL3472



Features of
TL3472IDR


* Wide Gain-Bandwidth Product . . . 4 MHz
* High Slew Rate . . . 13 V/μs
* Fast Settling Time . . . 1.1 μs to 0.1%
* Wide-Range Single-Supply Operation . . . 4 V to 36 V
* Wide Input Common-Mode Range Includes Ground (VCC−)
* Low Total Harmonic Distortion . . . 0.02%
* Large-Capacitance Drive Capability . . . 10,000 pF
* Output Short-Circuit Protection

Applications of TL3472IDR


Quality, low-cost, bipolar fabrication with innovative design concepts is employed for the TL3472 operational amplifier.


Environmental & Export Classifications of TL3472IDR

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001


TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC


Quality TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC wholesale

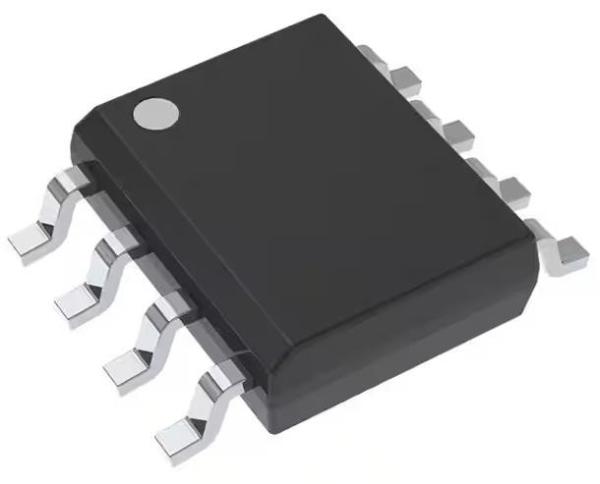

TL3472IDR Linear Integrated Circuits General Purpose Amplifier 2 Circuit 8-SOIC Images
