PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP

Brand Name : original

Model Number : PIC16F628A-I/P

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Core Processor : PIC

Core Size : 8-Bit

Speed : 20MHz

Connectivity : UART/USART

Peripherals : Brown-out Detect/Reset, POR, PWM, WDT

Number of I/O : 16

Program Memory Size : 3.5KB (2K x 14)

Program Memory Type : FLASH

RAM Size : 128 x 8

Voltage - Supply (Vcc/Vdd) : 3V ~ 5.5V

Contact Now

PIC16F628A-I/P PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP

Specifications of PIC16F628A-I/P

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tube
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O 16
Program Memory Size 3.5KB (2K x 14)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 224 x 8
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Data Converters -
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Through Hole
Package / Case 18-DIP (0.300", 7.62mm)
Supplier Device Package 18-PDIP
Base Product Number PIC16F628


Features of PIC16F628A-I/P


• Internal and external oscillator options:
- Precision internal 4 MHz oscillator factory calibrated to ±1%
- Low-power internal 48 kHz oscillator
- External Oscillator support for crystals and resonators
• Power-saving Sleep mode
• Programmable weak pull-ups on PORTB
• Multiplexed Master Clear/Input-pin
• Watchdog Timer with independent oscillator for reliable operation
• Low-voltage programming
• In-Circuit Serial Programming™ (via two pins)
• Programmable code protection
• Brown-out Reset
• Power-on Reset
• Power-up Timer and Oscillator Start-up Timer
• Wide operating voltage range (2.0-5.5V)
• Industrial and extended temperature range
• High-Endurance Flash/EEPROM cell:
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- 40 year data retention


Applications of PIC16F628A-I/P


The PIC16F627A/628A/648A are 18-pin Flash-based members of the versatile PIC16F627A/628A/648A family of low-cost, high-performance, CMOS, fullystatic, 8-bit microcontrollers.

Environmental & Export Classifications of PIC16F628A-I/P

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP


Quality PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP wholesale

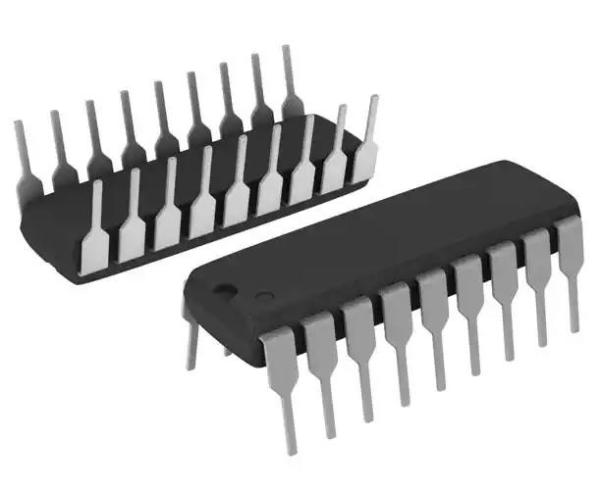

PIC16F628A-I/P PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB FLASH 18-PDIP Images
