PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC

Brand Name : original

Model Number : PIC16F676-I/SL

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Core Processor : PIC

Core Size : 8-Bit

Speed : 20MHz

Connectivity : -

Peripherals : Brown-out Detect/Reset, POR, WDT

Number of I/O : 12

Program Memory Size : 1.75KB (1K x 14)

Program Memory Type : FLASH

RAM Size : 128 x 8

Voltage - Supply (Vcc/Vdd) : 2V ~ 5.5V

Contact Now

PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC

Specifications of PIC16F676-I/SL​

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tube
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity -
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 12
Program Memory Size 1.75KB (1K x 14)
Program Memory Type FLASH
EEPROM Size 128 x 8
RAM Size 64 x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 5.5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Base Product Number PIC16F676


Features of PIC16F676-I/SL​


• Internal and External Oscillator Options
- Precision Internal 4 MHz oscillator factory calibrated to ±1%
- External Oscillator support for crystals and resonators
- 5 s wake-up from Sleep, 3.0V, typical
• Power-Saving Sleep mode
• Wide Operating Voltage Range – 2.0V to 5.5V
• Industrial and Extended Temperature Range
• Low-Power Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Detect (BOD)
• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
• Multiplexed MCLR/Input-pin
• Interrupt-on-Pin Change
• Individual Programmable Weak Pull-ups
• Programmable Code Protection
• High Endurance Flash/EEPROM Cell
- 100,000 write Flash endurance
- 1,000,000 write EEPROM endurance
- Flash/data EEPROM retention: > 40 years


Applications of PIC16F676-I/SL​


This document contains device specific information for the PIC16F630/676.

Environmental & Export Classifications of PIC16F676-I/SL​

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC


Quality PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC wholesale

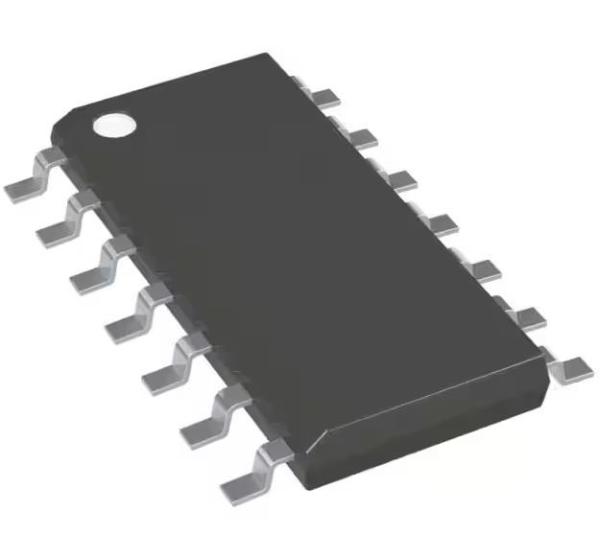

PIC16F676-I/SL PIC PIC® 16F Microcontroller IC 8-Bit 20MHz 1.75KB FLASH 14-SOIC Images
