PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH

Product Categories
SZ ADE Electronics Co., Ltd
Contact Now

PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH

Brand Name : original

Model Number : PIC16HV616T-I/SL

Certification : original

Place of Origin : original

MOQ : 1

Price : negotiation

Payment Terms : T/T

Supply Ability : 100,000

Delivery Time : 1-3working days

Packaging Details : carton box

Core Processor : PIC

Core Size : 8-Bit

Speed : 20MHz

Peripherals : Brown-out Detect/Reset, POR, WDT

Number of I/O : 11

Progra Memory Size : 3.5KB (2K x 14)m

Program Memory Type : FLASH

Voltage - Supply (Vcc/Vdd) : 2V ~ 5V

Contact Now

PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH

Specifications of PIC16HV616T-I/SL

TYPE DESCRIPTION
Category Integrated Circuits (ICs)
Embedded
Microcontrollers
Mfr Microchip Technology
Series PIC® 16F
Package Tape & Reel (TR)
Cut Tape (CT)
Core Processor PIC
Core Size 8-Bit
Speed 20MHz
Connectivity -
Peripherals Brown-out Detect/Reset, POR, WDT
Number of I/O 11
Program Memory Size 3.5KB (2K x 14)
Program Memory Type FLASH
EEPROM Size -
RAM Size 128 x 8
Voltage - Supply (Vcc/Vdd) 2V ~ 5V
Data Converters A/D 8x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-SOIC (0.154", 3.90mm Width)
Supplier Device Package 14-SOIC
Base Product Number PIC16HV616

Features of PIC16HV616T-I/SL


• Precision Internal Oscillator:
- Factory calibrated to ±1%, typical
- User selectable frequency: 4 MHz or 8 MHz
• Power-Saving Sleep mode
• Voltage Range:
- PIC16F610/616: 2.0V to 5.5V
- PIC16HV610/616: 2.0V to user defined maximum (see note)
• Industrial and Extended Temperature Range
• Power-on Reset (POR)
• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
• Brown-out Reset (BOR)
• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation
• Multiplexed Master Clear with Pull-up/Input Pin
• Programmable Code Protection
• High Endurance Flash:
- 100,000 write Flash endurance
- Flash retention: > 40 years

Description of PIC16HV616T-I/SL

The PIC16F610/616/16HV610/616 is covered by this data sheet. It is available in 14-pin PDIP, SOIC, TSSOP and 16-pin QFN packages.


Environmental & Export Classifications of PIC16HV616T-I/SL

ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.31.0001

PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH



Product Tags:

20MHz Microcontroller IC



8-Bit Microcontroller IC



PIC16HV616T-I/SL PIC 16F


Quality PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH wholesale

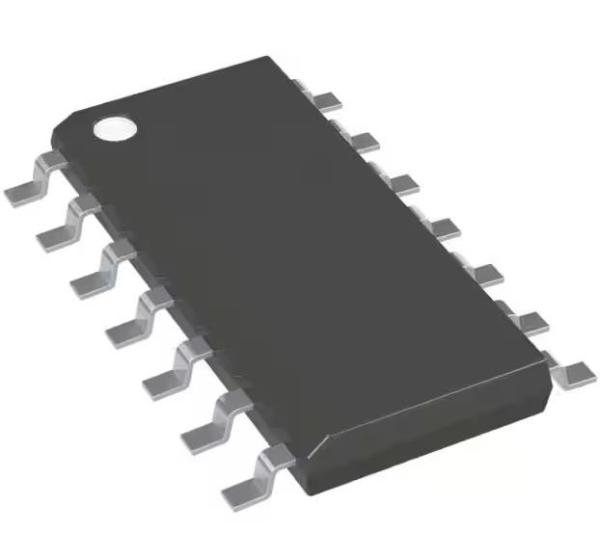

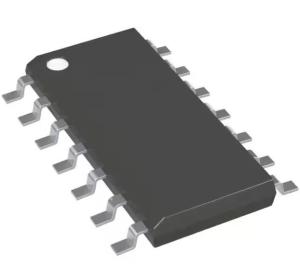

PIC16HV616T-I/SL PIC 16F Microcontroller IC 8-Bit 20MHz 3.5KB (2K x 14) FLASH Images
